Fit and center a counted design in a hoop
A 60 × 45-stitch design at 15 stitches per inch measures 10.16 × 7.62 cm. Adding 1 cm clearance on all four sides gives a 12.16 × 9.62 cm rectangle, requiring about 15.51 cm of usable hoop diameter.
Related lessons and tools
A 60 × 45-stitch design at 15 stitches per inch measures 10.16 × 7.62 cm. Adding 1 cm clearance on all four sides gives a 12.16 × 9.62 cm rectangle, requiring about 15.51 cm of usable hoop diameter.
Work through the example
- Keep the chart at 60 × 45 stitches. Set the actual fabric count and threads per stitch; the example uses 15 count over one.
- Transfer the design dimensions to hoop fit. Compare the computed opening with an actual hoop; the next listed example size is 17.78 cm.

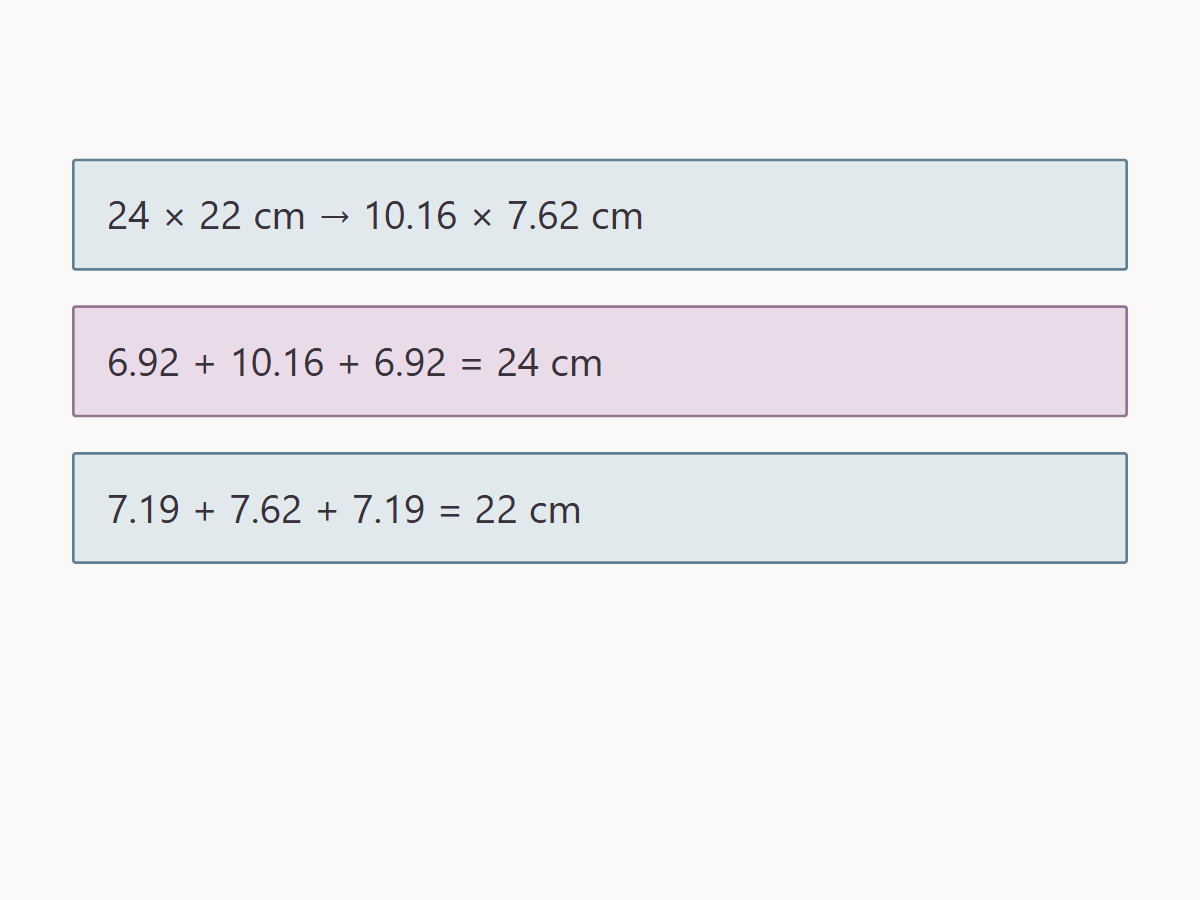

- Transfer the same design dimensions to centering. On usable 24 × 22 cm fabric, centered margins are 6.92 cm left/right and 7.19 cm top/bottom.
- Check that the fabric extends far enough beyond the actual hoop for gripping and finishing. Test marking and mount with the grain square, without distorting the fabric.
- Print chart extent, fabric count, hoop opening and placement measurements. Check the center against the chart before beginning the first stitch.
Check before committing
Hoop fit and fabric cutting are different decisions. Nominal diameters may differ from usable openings, and raised stitching can need more clearance than this flat rectangle.
Printable planning record
Inputs and sample measurements recorded; chosen result checked; material/color references recorded; reserve included once; construction and finishing checks completed.
Method and sources
These are original planning examples using the linked tools’ methods. Replace measured inputs with your own samples; a calculator cannot validate the construction. Keep the resulting measurements, choices and remaining checks with the project.
Cross-stitch fabric planner
Turn chart stitches and fabric count into finished and cutting dimensions.
Before you use this tool
Count chart squares, not centimetres. Fabric threads crossed per stitch means over-one or over-two; it is separate from the number of floss strands.
The design size excludes finishing margins; the cut size includes your chosen margin on all four sides.
Method and limits
Formula and assumptions
Design size equals chart stitches divided by effective stitches per unit. Choose one fabric thread per stitch for over-one or two for over-two; the selected or custom margin is added on every side.
Worked example
Example: 140 × 98 stitches on fabric with 55 threads/10 cm produces a 25.5 × 17.8 cm design; a 5 cm margin needs a 35.5 × 27.8 cm fabric cut.
Limits and rounding
Results are planning estimates from the values entered. Displayed decimals are rounded for craft use; whole materials and repeats round up where the method says so. Confirm gauge, material behavior, construction, and finished measurements before committing supplies.
Round-hoop fit planner
Find the minimum inner diameter that contains a rectangular design and clearance.
Before you use this tool
Use the design’s outer width and height, including projecting stitches. Clearance is extra room around each side, not fabric for mounting.
Check the hoop’s actual inside diameter against the minimum; a nominal size may describe a different part of the hoop.
Method and limits
Formula and assumptions
The mathematical minimum inner diameter is the diagonal of the design rectangle after clearance is added on every side. The practical suggestion rounds up to a common 3, 4, 5, 6, 7, 8, 10, or 12 inch hoop; verify the actual inner opening and choose a frame when that diameter is impractical.
Worked example
Example: an 8 × 6 cm design with 1 cm clearance needs at least a 12.81 cm inner diameter.
Limits and rounding
Results are planning estimates from the values entered. Displayed decimals are rounded for craft use; whole materials and repeats round up where the method says so. Confirm gauge, material behavior, construction, and finished measurements before committing supplies.
Embroidery design centering
Calculate equal side and top margins before transferring a design.
Before you use this tool
Measure the usable fabric and the finished design in the same units. At 50% the free space is split equally; 0% places the design at the starting edge and 100% at the opposite edge.
Mark the calculated edges lightly and check both axes before stitching.
Method and limits
Formula and assumptions
Remaining width and height are divided according to the selected 0–100% placement. Fifty percent centers the design; lower or higher values produce asymmetric margins. A design larger than the fabric is rejected.
Worked example
Example: a 24 × 18 cm design centered on 40 × 30 cm fabric leaves 8 cm at each side and 6 cm at top and bottom.
Limits and rounding
Results are planning estimates from the values entered. Displayed decimals are rounded for craft use; whole materials and repeats round up where the method says so. Confirm gauge, material behavior, construction, and finished measurements before committing supplies.
