Plan a needlepoint cushion from canvas and coverage
Calculate the design rectangle, then sample the actual canvas stitch and finishing construction.
Related lessons and tools
Calculate the design rectangle, then sample the actual canvas stitch and finishing construction.
Before you start
Have the chart key, chart width and height, fabric thread count and threads crossed by each stitch. Keep floss strands separate from fabric threads.
How to do it
- Plan needlepoint from canvas count — For one stitch per canvas intersection, design size follows stitch count divided by canvas count. Allow extra canvas for the frame and finishing separately.
- Compare tent-stitch working paths — Half-cross, continental and basketweave can show similar front diagonals while using different reverse paths. Compare coverage, consumption and distortion on the actual canvas.
- Estimate floss from a stitched sample — Measure the thread actually consumed by a known stitch count, including representative starts and finishes. Use matching ground, strands and stitch structure.
- Plan mounting and framing — Reserve enough ground for the selected attachment method and keep raised stitching clear of glazing. Choose a mounting method that supports the fabric evenly and can be reviewed later.
Try this example

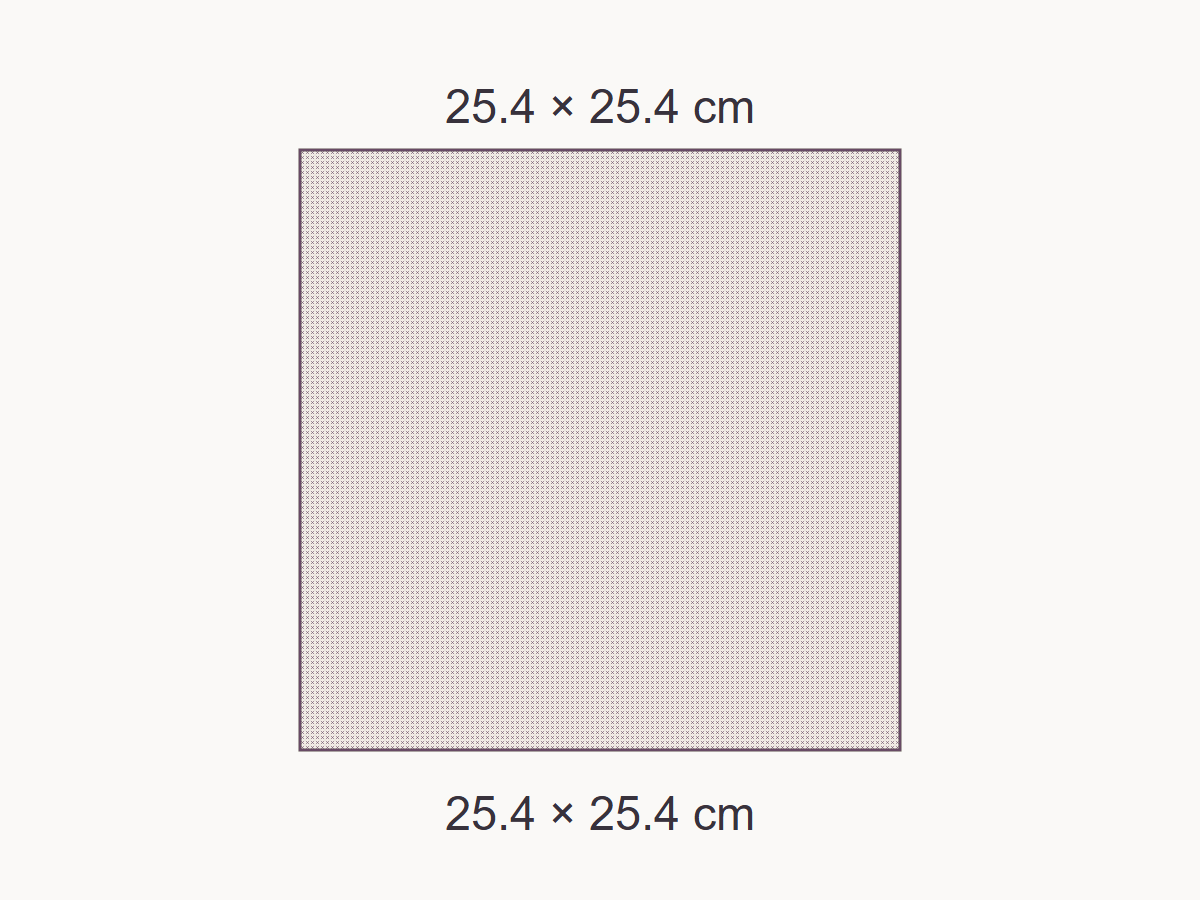

A 120 × 120 design on 12-mesh canvas spans 25.4 × 25.4 cm. Sample the chosen tent-stitch path for coverage and consumption, and add separate canvas allowance for working support and cushion assembly.
Check your result
- Count from two independent reference points before filling a large area. Verify the outer stitched dimensions on the actual ground; include finishing fabric separately.
- Changing fabric count changes physical size, not chart complexity. Fractional stitches, mixed scales and non-square grounds need explicit chart instructions.
Sources
Cross-stitch fabric planner
Turn chart stitches and fabric count into finished and cutting dimensions.
Before you use this tool
Count chart squares, not centimetres. Fabric threads crossed per stitch means over-one or over-two; it is separate from the number of floss strands.
The design size excludes finishing margins; the cut size includes your chosen margin on all four sides.
Method and limits
Formula and assumptions
Design size equals chart stitches divided by effective stitches per unit. Choose one fabric thread per stitch for over-one or two for over-two; the selected or custom margin is added on every side.
Worked example
Example: 140 × 98 stitches on fabric with 55 threads/10 cm produces a 25.5 × 17.8 cm design; a 5 cm margin needs a 35.5 × 27.8 cm fabric cut.
Limits and rounding
Results are planning estimates from the values entered. Displayed decimals are rounded for craft use; whole materials and repeats round up where the method says so. Confirm gauge, material behavior, construction, and finished measurements before committing supplies.
